Connectivity Summary

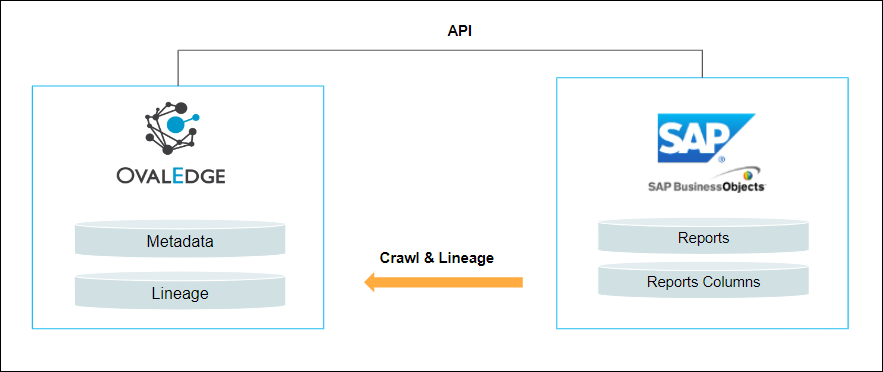

An out-of-the-box connector is available for SAP BO. It provides support for crawling and lineage building. The connectivity to SAP BO is via Rest API, which is included in the platform.
The connector supports all latest versions of SAP BO.
Connector Capabilities
The connector capabilities are given below:
Crawling
Supported objects for crawling are: Reports
Please see this article Crawling Data, for more details on crawling.
Lineage Building
Lineage Entities | Details |
Table lineage |
Supported |
Column lineage |
Supported |
Lineage Sources |
Supported |
Report Columns |
While building lineage, we will get report columns. |
Pre-requisites
To use the connector, the following need to be available:
-
For Building Lineage
- The server should be windows based.
- Before crawling, make sure that the following software is installed in the server machine to get the metadata:
- Visual Studio 12 or later than version 12 will be good - (https://visualstudio.microsoft.com/vs/older-downloads/)
- Crystal Report for Visual Studio: (https://origin.softwaredownloads.sap.com/public/file/0020000000898892019)
- An admin/service account that has read permission on reports/folders. The minimum privileges required are:
Operation | Access Permission |
Connection validate |
Read Permission |
Crawl Domains |
Read Permission |
Crawl Reports |
Read Permission |
- The Service Account should be created with the authentication type as sec Enterprise.
Connection Details
The following connection settings should be added for connecting to an SAP BO:
- Database Type: SAP BO
- Connection Name: Select a Connection name for the SAP BO. You specify a reference name to identify your SAPBO connection in OvalEdge easily.
- Base URL: Rest API instance URL
Example: http://18.222.163.191:6405/biprws/ - Username: SAP BO login username
- Password: SAP BO login password
- Authentication Type: The authentication type is like windows authentication or a normal username and password (sec Enterprise).
- Filter: If nothing is specified, it will show all the folders available in SAP BO, or users can enter a specific folder to crawl.
Points to note
- OvalEdge application crawls all the folders and reports from respective folders and saves them in the Data Catalog.
- The folder structure will be the same in OvalEdge as in the SAP Business Objects.
- During the crawling phase, the OvalEdge application gets the metadata(xml/JSON) from crystal, and webi reports, save them in the OvalEdge Database and uses it for further processing.
- Ensure sure ovaledge.temppath and rpttoxml.executable.path are configured correctly.
