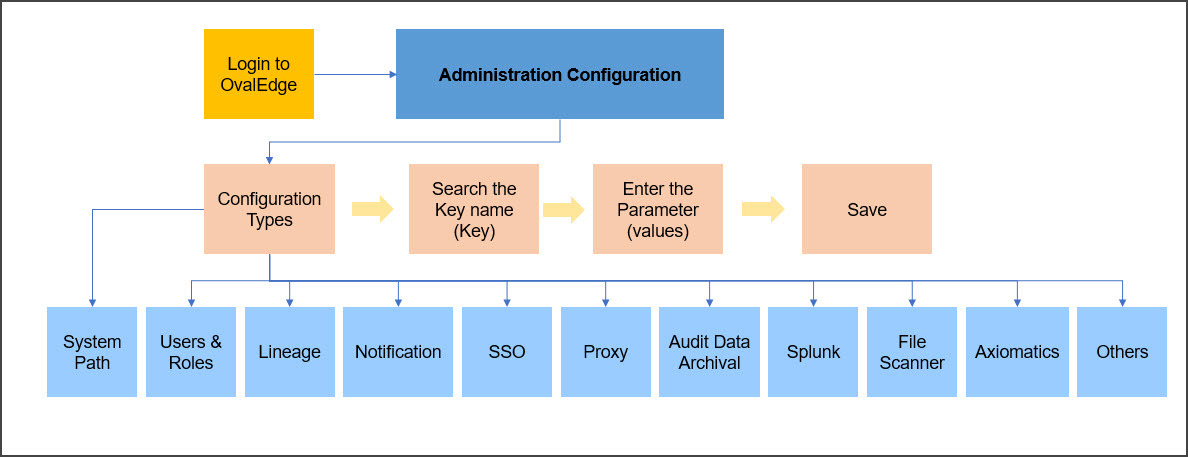

Configuration

Ovaledge.jarpath (System Path)

/home/ovaledge/oejars(Path)

Various drivers jar file’s location, to ingest data into OvalEdge. The directory/path where all the drivers are stored

Ovaledge.base.url  (System Path)

https://app.ovaledge .net/login

URL of the prod environment/test environment where users can register themselves and log in

Ovaledge.temppath  (System Path)

/home/ovaledge/temp(Path)

A temp path in the Server where the downloaded files from OvalEdge will be stored

Rpttoxml.executable.path (System Path)

Crystal Reports

For BO reports (Crystal type) this is the Path where it converts rpt file to xml format and brings to catalog

Qlik.sense.path (System Path)

Qlik Sense

Specific certification path to access qlik sense server (Input from client)

Qlik.sense.xml (System Path)

Qlik Sense

User must provide a specific path for XMl file to store while crawling Qliksense Reports.

Ssis.filepath (system Path)

SSIS

All Files, which are used in SSIS packages should be saved in this location and this location should be given to access the SSIS packages which will be used to build a lineage

ovaledge.license.agreement.link

https://ovaledge.com/eula/

The url provided in the value column navigates to the End user license agreement page, where the user can read the terms and conditions for the license agreement.

ovaledge.admin.principle

admin

OvalEdge application admin userid. (RESTART REQUIRED)

ovaledge.admin.credential

XXXXXXXXXX

OvalEdge applications admin password.

ovaledge.role.admin

OE_ADMIN

This role is configured as a default admin role with entire application access. The default is OE_ADMIN

ovaledge.tag.role

Example: TAG_CREATORS

These are custom roles created in   These are custom roles created in OvalEdge and configured to be used for creating parent and child tags in the application.

ovaledge.role.public

OE_PUBLIC

System user role configured as default public role

ovaledge.crawler. role

OE_ADMIN

These are custom roles created in OvalEdge and configured to be used for crawling the new data sources.

Ovaledge.api.role

Empty

API Role (Leave empty to permit all user roles)

Empty-accessed by anyone

OE_ADMIN- APIs only accessed by OE_ADMIN

ovaledge.role. governance

OE_ADMIN

These are custom roles created in OvalEdge and configured to validate the custom fields in the incoming objects.

Oe.userdelete.role

Empty

Alternative user management to delete the users

ovaledge.jobs.view.role

OE_ADMIN, Empty

Jobs view/edit role

ovaledge.default.role

OE_PUBLIC

This is the default role applied to a user if the user does not have permissions on the object when it change the owner or steward

remote.user.password

XXXXXXXXXX

RemoteUser Default Password

ovaledge.username.pattern

lastname,firstname

This configuration helps to set the user name pattern. (firstname, lastname /lastname, firstname)

shallow.lineage.connection.ids

Connection id’s

Add all connection ids to search tables/columns for shallow lineage

Lineage.selfbuild

True/False

Setting for building self-lineage from any Queries.

lineage.width.nodes

3

To show lineage graph width at max

Lineage.height.nodes

Numbers

To show lineage graph width at max level

Lineage.debugmode

True/False

For getting the temp tables -debug the temp table lineage

Lineage.pick.anytable

True/False

While building the lineage, pick any table from queries which are available in oetable data.

Lineage.shallow

True/False

When query is sent for for lineage building, it will verify whether that query is a procedure/function/normal query

If it is not a normal query, it will prefer shallow lineage there to pick references from it. It can be set to  TRUE, when lineage is not yet all build.

connections.order.lineage

Empty

Add needed connection id to pick the tables if multiple connections are there

need.hard.coded.values.in.lineage

True/False

To the hard-coded/fixed-values in lineage make this flag as true

add.dataset.lineage.version

True/False

Apply dataset lineage versioning ? (true/false)

process.function.related.lineage

True/False

A User defined function is used in a query pick the function and process the function, use function related table column in the query instead of Function

lineage.report.column.reference

True/False

Show lineage for tablecolumn to reportcolumn in reports? (true/false)

versioning.for.lineage.connection

Empty

Lineage versioning for datasets that are part of OE database connections. Add such connection ids separated by comma(,)

informatica.query.dialect

Empty

Configuration to store database used in Informatica Workflows.

lineage.node.height

3

To show lineage graph width at max for a particular node

ovaledge.lineage.maxquerylines

Empty

Maximum lines of query to be allowed to process at the time of lineage

informatica.param.file.type

.txt,.ini,.param,.prm

Type of files to read configurations from

is.correctquery.required

True/False

make true if required correct query functionality

Ovaledge.namebasedrelationsjob.ispkbased (No information)

True/False

This parameter confirms whether to consider PK or not while building column name-based relationships [client Specific UWM].

Lineage.level.size (No information)

Numbers

Setting will show the specific levels in UI on both source and destination w.r.t.to selected object.

ovaledge.smtp.server

Mail.smtp2go.com

SMTP Server of Email Provider.

Test SMTP: The user can click on the Test SMTP button to check the configuration of SMTP is successfully completed.

ovaledge.smtp.port

2525/587/465

Port number at SMTP Server

ovaledge.smtp.mode

Default/TLS/SSL

Transport Mode: SSL/TSL/Default

ovaledge.email.username

notify@ovaledge.com

UserId at SMTP Server. Leave Empty for passwordless SMTP server

ovaledge.email.password

XXXXXXXXXX

The password of this account

ovaledge.email.fromEmail

notify@ovaledge.com

Default from Email Address

license.expiry.emails

notify@ovaledge.com

Helps to send an email when the license of the OvalEdge application gets expired. (multiple users can be configured separated by comma)

slack.app.oauth.token

XXXXXXXXXX

Slack App OAuth token. Slack: Once the oauth token is configured user can click on the Test slack button. Upon confirmation, it gives alerts that slack is successfully configured.

Saml.role.prefix

User roles configured in OvalEdge-OE_ADMIN/OE_PUBLIC

On the client-side, they will give different prefixes like PH_ADMIN

Whatever prefix is there it can get configure.SO leave it empty

ovaledge.extauth.authtype

Ovaledge saml type (REMOTE or HYBRID)

REMOTE-Default value. Example: Client roles and users will be coming to our application from the external authentication methods.

For example: if the OKTA has a username, email, first name, and role configured. In the REMOTE both user and user role will be imported from OKTA and taken into consideration

HYBRID- whatever roles will be in their SSO will not come. Only users will be copied, and user roles need to be configured in OE and OE user roles must be assigned manually. Initially, when users sign in for the first time, they will have the OE_PUBLIC role. Then the admin must change the user roles.

Ldap.allow.emptyemail

True/False

Empty Email support for LDAP user

Saml.role.suffix

  True/False

User roles configured in OvalEdge-OE_ADMIN/OE_PUBLIC

On the client-side, they will give different suffixes like ADMIN

Whatever suffix is there it can get configure.SO leave it empty

User.allow.hashpassword

True/False

User should be able to login with DB password|hashpassword

ovaledge.login.application

TRUE

Is OvalEdge allowed to be logged via a self-service user account.

proxy.host

Proxy Host

Proxy Host

proxy.port

Proxy Port

Proxy Port

proxy.protocol

Proxy Protocol(https/http)

Proxy Protocol(https/http)

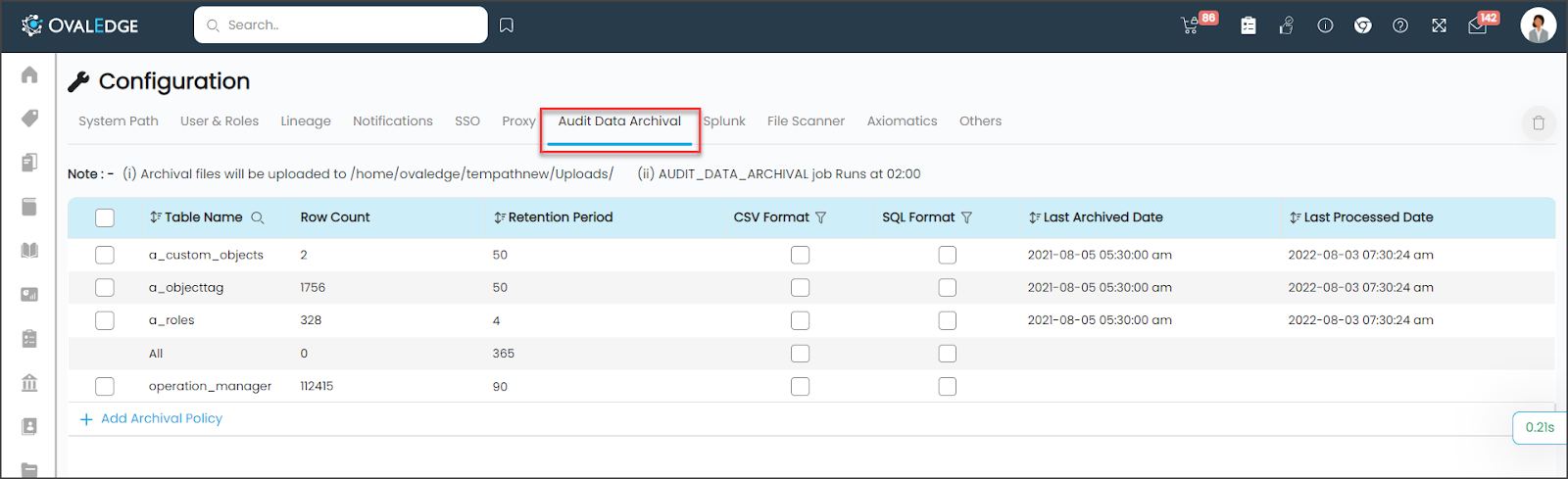

Table Name

Name of the table added to data archival.

Row Count

Display the total row count of a table.

Retention Period

It displays the number of days the table is archived.

CSV Format

Audit data can be archived in the CSV format.

SQL Format

Audit data can be archived in the SQL format.

Last Archived Date

It displays the last date of data object archival.

Last Processed Date

It displays the last date of the data object processed for the archival.

splunk.tcp_udp.host

http://splunk.dns.com:9999

Hostname of splunk tcp events consuming url.

splunk.hec.host

http://splunk.dns.com:8088

Hostname of splunk http event collector url.

splunk.hec.token

Empty

Splunk token to authenticate HEC index. This is mandatory for HEC index logs storing.

splunk.index

Empty

Splunk index that stores log messages coming from http event collector. (Optional)

fs.system.hostname

Empty

This parameter is used to collect data filescan system address

fs.system.username

Empty

This parameter is used to collect data filescan system username

fs.system.password

Empty

This parameter is used to collect data filescan system password

fs.filemanager.enable

True/False

This parameter is used to enable/disable filescan service on File Manager.

fs.loadmetadata.enable

True/False

This parameter is used to enable/disable filescan service on Load Metadata for Files.

axiomatics.validate.url

Empty

Axiomatics validate URL to process approved axiomatics request through workflow

axiomatics.createpolicy.url

Empty

Axiomatics policy creation url

axiomatics.policytest.url

Empty

It is used to test the submitted policy access

axiomatics.bearertoken

xxxxxxxxxx

Bearer token to submit the axiomatics requests

axiomatics.clientid

xxxxxxxxxx

Client Id used to submit the axiomatics requests

axiomatics.clientsecret

xxxxxxxxxx

Client secret used to submit the axiomatic requests

axiomatics.api.gatewayid

Empty

API Gateway ID used to submit the axiomatic requests

axiomatics.token.url

Empty

Axiomatics Bearer token endpoint

axiomatics.grant.type

API Grant type used to submit axiomatic requests

axiomatics.scope

API Scope used to submit axiomatic requests

axiomatics.processing.type

Axiomatics accessing type

axiomatics.payload

Empty

Axiomatics payload sample

axiomatics.bearer.token

xxxxxxxxxx

Axiomatics beaerer token

handle.missing.view.name

FALSE

Use Additional logic to handle missing view names in code

use.conn.to.resolve.tables

FALSE

Use Connection info logic to resolve ambiguous tables in code

ordertyperetrieve.default.classification

Empty

Default retrieve classification

Ai.match.score

10

When AI is performed on term recommendation, the objects that have a Smart Score value above the given threshold is only listed

Aiterm.maxcolumns

Example: 50000

When a run AI Job in Business Glossary, if the total columns in consideration are more than the configured number, it will exit the job. Number of columns considered for this recommendation job.

Ordertypedelete.default.classification

NA

Client Specific

Ovaledge.default.domain

NA

Client Specific

enforce.validateobjects

FALSE

To validate New Objects by Data Governance Team

Tag.tile.size

Small/ Medium/ Large

Size of each tag in OvalEdge. This decides the number of tags that can fit on the home page.

Tag.additionaldelete.fieldname

NA

Client Specific

Tag.additionalretrieve.fieldname

NA

Client Specific

Parent.exceptiontag.name

NA

Client Specific

Default.customdefinition.name

NA

Client Specific

default.customobject.fieldposition

NA

Client Specific

ovaledge.filesize.limit

2097152

Size limit of each file upload

profile.json.file.read.single.line

NA

Client Specific

file.skipfullprofile

True/False

Skip File Profiling

Ovaledge.fileupload.maxfiles

10

Maximum file count to be considered in uploading Files. If there are more files in a root folder it will connect and if try to upload files more than this count mentioned, it cannot upload those.

Alternate.file.ext.types

*TXT, *CSV

Alternate file types for client aka TXT=CSV. Sometimes clients store one file type as another type as shown in the example

Ovaledge.qlik.iframe (Other)

True/False

Qlik iframe value display in summary page of qlik dashboards(true or false)

Qubolehive.skipviewprofile

FALSE

Skip profiling of Qubole Hive Views

snowflake.skipviewprofile

FALSE

Skip profiling of Snowflake Views

Ovaledge.locale

en

Default App Locale

Ovaledge.license.agreement.link

https://ovaledge.com/eula/

License agreement Link

Ovaledge.term.policy

A|3

OvalEdge Term Recommendation Policy

high.perf.server.host

Empty

OvalEdge high-performance server.

high.perf.server.port

Empty

OvalEdge high-performance port.

high.perf.rt.server.port

Empty

OvalEdge high-performance real-time port.

high.perf.rt.server.host

Empty

OvalEdge high performance real time server.

high.perf.use.blue.print

Empty

Use a blueprint concept for this client.

high.perf.limit.catalog.file

0

OvalEdge high-performance catalog job will execute on a folder only when the number of files in that folder is less than this limit.

high.perf.limit.profile.file

0

OvalEdge high-performance catalog job will execute on a folder only when the number of files in that folder is less than this limit.

Ovaledge.log.level

Info/Debug

DEBUG- it will provide detailed logs

INFO- major information. The log files are not in the DEBUG mode as they will occupy more memory to store the detailed information and their log files will become huge.

Ovaledge.running.jobs.count

5

Maximum jobs that can get initiated at a time

For example: if the limit is configured as 5, and there are 15 serial jobs, only the first 5 jobs will be initiated. AS soon as one job is executed completely, the 6th job will start

Lineage

Mandatory

Details

Source Connection*

Yes

Enter the Source Connection name from the crawler page.

Source Schema*

Yes

Enter the Source Schema name

Source Name*

Yes

Enter the Source Name (Table name /File name /Report name)

SourceType*

Yes

Enter the Source Type (Table /File /Report)

Target Connection*

Yes

Enter the Target Connection name

Target Schema*

Yes

Enter the Target Schema name

Target Name*

Yes

Enter the Target Name (Table name /File name /Report name)

Target Type*

Yes

Enter the Target Type (Table /File /Report)

Reference Name

No

Enter the data set name (query).

Reference Connection

No

Enter the data set connection name from the crawler page.

Reference Schema

No

Enter the data set Schema name from the crawler page.

Reference Value

No

Enter the Query.

Transformation Notes

No

Enter the Description about the lineage.

Column Info

No

Enter the description about the column.

Source Column

No

Enter the source column name from which the data is moving.

Target Column

No

Enter the target column name to which the data is moving.

Source Object Id

No

Enter the Source Object Id.

Target Object Id

No

Enter the Target Object Id.

Source Column Id

No

Enter the Source Column Id.

Target Column Id

No

Enter the Target Column Id.
