OvalEdge Database Backup Process

MySQL Connectivity on OvalEdgeDB

Purpose

This document outlines the db backup process of OvalEdge Database and provides step-by-step instructions for establishing connections and performing database backups.

Installation of OE Database

1. Local Installation: Choose the option for local installation of OvalEdge Database.
2. Host Installation (e.g., AWS, Azure):  If installed on a host server, obtain the IP address for connecting to the database.

Establishing the Connection in Windows Machine

1. Connect through MySQL Command-Line: Open Command Prompt and navigate to the MySQL bin folder.

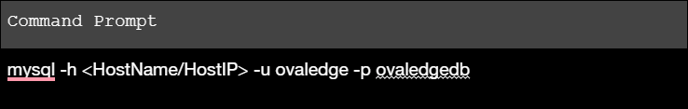

2. Using Host IP: If OvalEdgeDB is installed on a remote server, use the following command:


Establishing the Connection in Linux Machine

1. Ensure MySQL Server is installed on the Linux machine.
2. Connect to MySQL: Run the command.

3. Connect to Remote Server: If OvalEdgeDB is installed on a remote server, use the command:


Database Backup Commands:

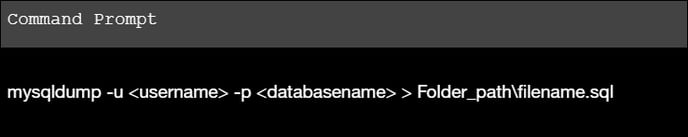

1. Local Backup: Execute the command:

   Example: mysqldump -u root -p ovaledgedb > D:\ovaledgebkp_210222.sql
   Note: The username must be the Root user.

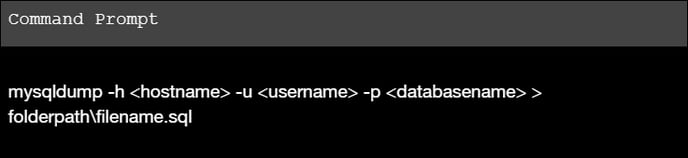

2. Remote Backup: Execute the command:
