      Azure Devops

      This document outlines the integration with the Azure Devops connector, enabling streamlined metadata management through features such as crawling and lineage building (both automatic and manual). It also supports impact analysis and ensures secure authentication via Credential Manager.

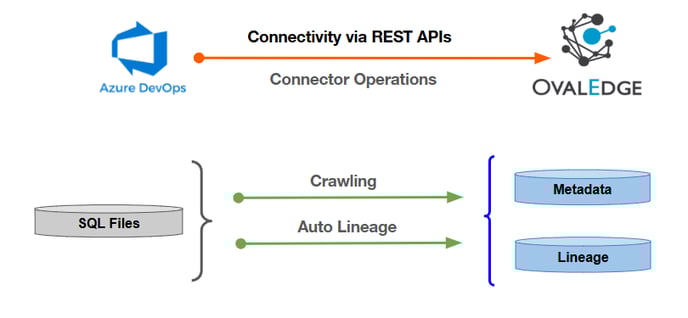

      Azure Devops

      Overview

      Connector Details

      Connector Category

      ETL

      Connector Version

      Release6.3.4.x

      Releases Supported (Available from)

      Release5

      Connectivity

      [How the connection is established with Azure Devops]

      REST APIs

      Verified Azure Devops Version

      5.1 and later

      The Azure Devops connector has been validated with the mentioned "Verified Azure Devops Versions" and is expected to be compatible with other supported Azure Devops versions. If there are any issues with validation or metadata crawling, please submit a support ticket for investigation and feedback.

      Connector Features

      Feature

      Availability


      Crawling

      ✅
      Delta Crawling

      ❌
      Profiling

      ❌
      Query Sheet

      ❌
      Data Preview

      ❌
      Auto Lineage

      ✅
      Manual Lineage

      ✅
      Secure Authentication via Credential Manager

      ✅
      Data Quality

      ❌
      DAM (Data Access Management)

      ❌
      Bridge

      ✅

      Metadata Mapping

      The following objects are crawled from Azure Devops and mapped to the corresponding UI assets.

      Azure Devops Object

      Azure Devops Attribute

      OvalEdge Attribute

      OvaEdge Category

      OvalEdge Type

      SQL File

      .sql File

      Code Name

      Codes

      ADB_SQL

      Set up a Connection

      Prerequisites

      The following are the prerequisites to establish a connection:

      Service Account User Permissions

      It is recommended to use a separate service account to establish the connection to the data source, configured with the following minimum set of permissions.

      👨‍💻 Who can provide these permissions? These permissions are typically granted by the Azure Devops administrator, as users may not have the required access to assign them independently.

      Operations

      Objects

      Access Permission

      Crawling

      .sql files

      Read only

      Connection Configuration Steps

      Users are required to have the Connector Creator role in order to configure a new connection.

      • Log into OvalEdge, go to Administration > Connectors, click + (New Connector), search for Azure Devops, and complete the required parameters.

      Fields marked with an asterisk (*) are mandatory for establishing a connection.

      Field Name

      Description

      Connector Type

      By default, "Azure Devops" is displayed as the selected connector type.

      Connector Settings

      Credential Manager*

      Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selection.

      Supported Credential Managers:

      • OE Credential Manager
      • AWS Secrets Manager
      • HashiCorp
      • Azure Key Vault

      License Add Ons

      Auto Lineage

      Supported

      Data Quality

      Not Supported

      Data Access

      Not Supported
      • Select the checkbox for Auto Lineage Add-On to build data lineage automatically.

      Connector Name*

      Enter a unique name for the Azure Devops connection

      (Example: "AzureDevops").

      Connector Environment

      Select the environment (Example: PROD, STG) configured for the connector.

      Host Name*

      Enter the IP address or base URL of the Azure DevOps instance.

      Organisation*

      Enter the Organization ID of the Azure DevOps server.

      Token*

      Enter the Personal Access Token (PAT) for authentication with the Azure DevOps server.

      Connection String

      Configure the connection string for the SQL Server database:

      • Automatic Mode: The system generates a connection string based on the provided credentials.
      • Manual Mode: Enter a valid connection string manually.

      Replace placeholders with actual database details.

      {sid} refers to Database Name.

      Proxy Enabled*

      Select Yes to route API calls through a proxy server. Select No to bypass the proxy and connect directly.



      Default Governance Roles

      Default Governance Roles*

      Select the appropriate users or teams for each governance role from the drop-down list. All users configured in the security settings are available for selection.

      Admin Roles

      Admin Roles*

      Select one or more users from the drop-down list for Integration Admin and Security & Governance Admin. All users configured in the security settings are available for selection.

      Bridge

      Select Bridge*

      If applicable, select the bridge from the drop-down list.

      The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.
      • After entering all connection details, the following actions can be performed:
        • Click Validate to verify the connection.
        • Click Save to store the connection for future use.
        • Click Save & Configure to apply additional settings before saving.
      • The saved connection will appear on the Connectors home page.

      Manage Connector Operations

      Crawl

      To perform crawl operations, users must be assigned the Integration Admin role.

      The Crawl/Profile button allows users to select one or more schemas for crawling.

      1. Navigate to the Connectors page and click Crawl/Profile.
      2. Select the schemas to crawl.
      3. Click Run to collect metadata from the connected source and load it into the Data Catalog.
      4. After a successful crawl, the information appears in the Data Catalog > Databases/<>Codes tab.

      The Schedule checkbox allows automated crawling at defined intervals, from a minute to a year.

      1. Click the Schedule checkbox to enable the Select Period drop-down.
      2. Select a time period for the operation from the drop-down menu.
      3. Click Schedule to initiate metadata collection from the connected source.
      4. The system will automatically execute the crawl operation at the scheduled time.

      Other Operations

      The Connectors page provides a centralized view of all configured connectors, along with their health status.

      Managing connectors includes:

      • Connector Health: Displays the current status of each connector using a green icon for active connections and a red icon for inactive connections, helping to monitor the connectivity with data sources.
      • Viewing: Click the Eye icon next to the connector name to view connector details, including databases, tables, columns, and codes.

      Nine Dots Menu Options:

      To view, edit, validate, build lineage, configure, or delete connectors, click on the Nine Dots menu.

      • Edit Connector: Update and revalidate the data source.
      • Validate Connector: Check the connection's integrity.
      • Settings: Modify connector settings.
        • Crawler: Configure data extraction.
        • Access Instructions: Add notes on how data can be accessed.
        • Business Glossary Settings: Manage term associations at the connector level.
        • Others: Configure notification recipients for metadata changes.
      • Build Lineage: Automatically build data lineage using source code parsing.
      • Delete Connector: Remove a connector with confirmation.
